Suzuki Suspension — Across the SA Range

South African road surfaces are harsher on suspension than the conditions these cars were originally calibrated for, and Suzuki's lighter kerb weights mean components are sized closer to the limit. The Jimny is its own case entirely: enough of them have been lifted or re-shod that standard-height parts are the wrong answer more often than not. In practice the decision in front of you is whether to replace only the component that has failed or refresh the whole corner, because everything bolted alongside a worn damper has covered exactly the same distance over exactly the same roads.

The generation or year, and — if it is a Jimny or a 4x4 derivative — whether the suspension is standard or has been modified. With that we can usually confirm the right part quickly, and we'll tell you whether we're quoting new, aftermarket or good used rather than leaving you to guess.

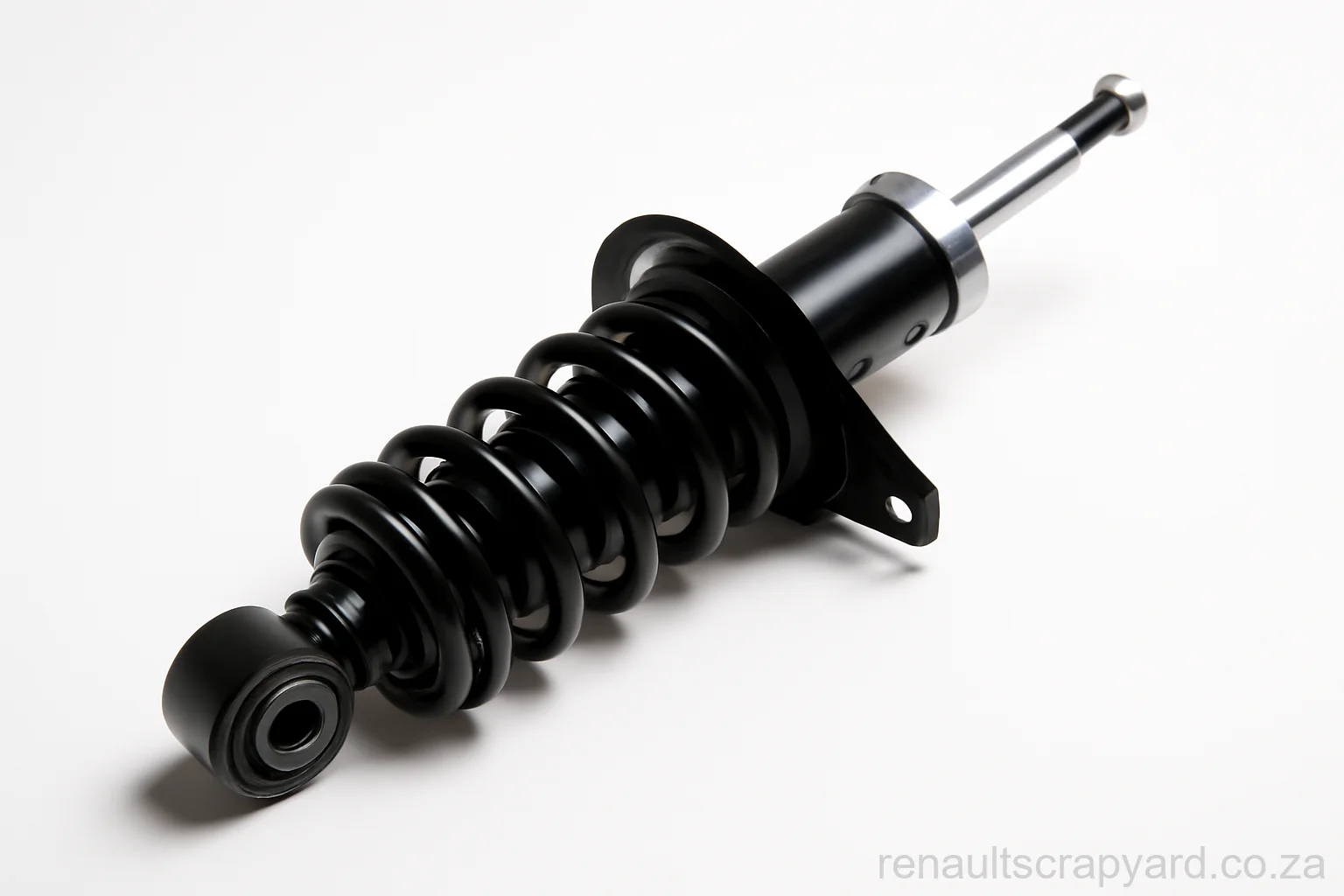

Leaking oil is the obvious failure, but a damper can lose its valving internally and look perfectly dry. The tell is behaviour rather than appearance — the body keeps moving after a bump instead of settling in one motion, the nose dives further under braking, and the car feels floaty over undulating tar. Worn dampers also chew tyres in a scalloped pattern that alignment does not cure.

Effectively no. The Jimny runs a ladder frame with three-link rigid axles front and rear, sprung on coils, while the hatchbacks and crossovers are unibody cars with front struts and a much simpler rear beam. The steering vocabulary differs as well, because the Jimny uses recirculating-ball steering with a box, drag link and pitman arm rather than a rack with two tie rods. Springs, arms, bushes and dampers do not cross over. Send the VIN through the quote form so we pull parts against your actual chassis.

Yes, per axle. A new damper on one side and a tired one on the other gives the car different damping left to right, which shows up as pulling under braking and unpredictable behaviour in an emergency swerve. Springs follow the same rule for the same reason.

They routinely do. A hard strike can buckle a rim, split a tyre sidewall internally where you cannot see it, knock the alignment out, bend a lower arm or crack a strut mount. If the steering wheel sits off-centre after an impact, or the car tracks to one side on a flat road, get it on an alignment rig before you start replacing parts.

That is the shake owners call death wobble, and it is a characteristic of live-axle front suspension rather than a Suzuki defect — the steering wheel jerks hard left and right and you briefly lose steering feel. The usual culprits are worn kingpin bearings in the steering knuckles, tired radius arm and panhard rod bushes, worn track rod ends, a failing front wheel bearing, or wheels that are unbalanced or at the wrong pressure. Fitting a steering damper is the one thing not to do as a cure — it masks the wobble while the worn component stays worn.
